Name: Full Automatic Jumbo Paper Roll Slitter 300m/min 380V
Brand: Fujian Xinyun Machinery Development Co., Ltd.
SKU: XY-XX-A
Price: 43,685.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: XINYUN

Sertifikasi: CE

Nomor model: XY-XX-A

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 set

Harga: 27370-60000 USD

Kemasan rincian: Palet Kayu Ekspor Standar

Waktu pengiriman: 50-60 hari

Syarat-syarat pembayaran: T/t

Menyediakan kemampuan: 600 set per tahun

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                full automatic jumbo paper slitter, jumbo roll slitter 300m/min, 380V paper roll rewinder


Otomatis:	Otomatis penuh	Penggunaan:	Jumbo Paper Roll Slitter dan Rewinder
Bahan bubur:	Pulp Kayu	Sedang mengemas:	Palet kayu
Kecepatan:	280-300m/mnt	Jaminan:	12 bulan
Bahan bilah:	Baja paduan	Metode pemotongan:	Pisau cukur
Lebar celah:	dapat disesuaikan (lebar minimum 200mm)	Memutar Ulang Diameter Inti:	3 inci
Catu daya:	380V, 50Hz, 3 fase	Lebar pemotongan:	100-1200mm
Ukuran:	Kebiasaan	Berat:	5000kg

Otomatis:	Otomatis penuh
Penggunaan:	Jumbo Paper Roll Slitter dan Rewinder
Bahan bubur:	Pulp Kayu
Sedang mengemas:	Palet kayu
Kecepatan:	280-300m/mnt
Jaminan:	12 bulan
Bahan bilah:	Baja paduan
Metode pemotongan:	Pisau cukur
Lebar celah:	dapat disesuaikan (lebar minimum 200mm)
Memutar Ulang Diameter Inti:	3 inci
Catu daya:	380V, 50Hz, 3 fase
Lebar pemotongan:	100-1200mm
Ukuran:	Kebiasaan
Berat:	5000kg

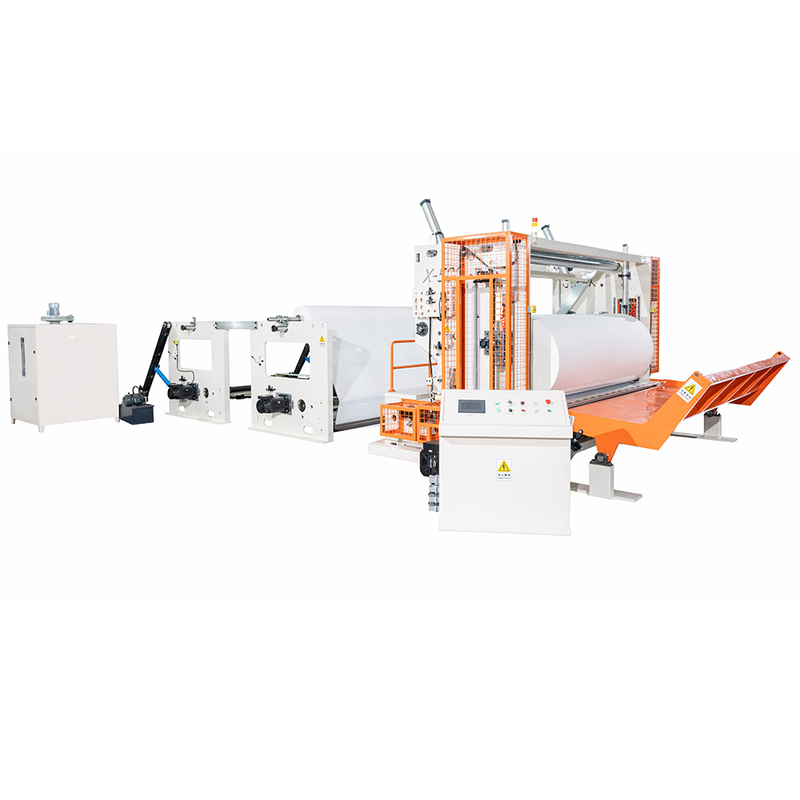

Full Automatic Jumbo Paper Roll Slitter 300m/min 380V

Big Jumbo Roll Paper Slitting Machine to Small Roll

Product Specifications

Attribute	Value
Automatic	Full automatic
Usage	Jumbo paper roll slitter and rewinder
Pulp material	Wood Pulp
Packing	Wooden pallet
Speed	280-300m/min
Warranty	12 months
Blade Material	Alloy Steel
Slitting Method	Razor Blade
Slitting width	Adjustable (minimum width as 200mm)
Rewinding Core Diameter	3 inches
Power Supply	380V, 50Hz, 3 Phase
Cutting Width	100-1200mm
Size	Custom
Weight	5000kg

Key Features

Air-shaft reeling system for easy paper pipe positioning
Steel-against-steel press-edge system with independent cylinder adjustment
Horizontal type unreeling stand with pneumatic lifter and flat belt conveyor
Individual tension adjustment unit on each jumbo roll
Front and back inching switch for safe and convenient operation
Optional tail-gluing and edge-trimming functions (available upon request)

Technical Parameters

Model	1092	1575	2000	2200	2400	2600	2800
Width of raw material	1200	1750	1950	2150	2350	2550	2750
Dia. of finished product (mm)	Φ90~1200 (the tension can be adjustable)
Dia. of raw material (mm)	Φ1200 (please specify other requirements)
Inner dia. of core of raw material	76.2 mm (please specify other requirements)
Processing capacity	280-300m/min
Reeling	Air shaft (one piece)
Unwinding stand	1-3 layer (please specify required layers)
Pneumatic system	3 air compressor, Min. pressure 5kg/cm² (prepared by clients)
Power	4.5-18 kw (380V 50HZ)
Overall size (mm) (L×W×H)	6200x2600x1800~6200x4000x1800 mm
Weight	1800~4800kg
